Steel Products
Product Specifications
| Product | Grade | Shape | Process | Size Range |
|---|---|---|---|---|
| Stainless Steel | AISI 303 AISI 303Cu AISI 304 AISI 316 AISI 430F AISI 431S |
Round Hexagon Round Round Square Hexagon Round Round Round |
Cold Drawn & Polished Cold Drawn Cold Drawn & Polished Cold Drawn & Polished Cold Drawn Cold Drawn Cold Drawn & Polished Cold Drawn & Polished Cold Drawn & Polished |
2.0mm - 32.0mm 4.0mm - 18.0mm 2.0mm - 32.0mm 2.0mm - 32.0mm 4.0mm - 12.7mm 4.0mm - 20.0mm 2.0mm - 32mm 2.0mm - 32.0mm 20.0mm - 50.0mm |
| Low Carbon Steel | AISI 1008 - AISI 1018 |
Round Round Square Hexagon |
Cold Drawn & Polished Peeled and Polished Cold Drawn Cold Drawn |
4.5mm - 75.0mm 75.0mm - 200.0mm 4.5mm - 12.7mm 4.5mm - 25.4mm |
| Medium Carbon Steel | AISI 1035 AISI 1045 |
Round Round Round |
Cold Drawn & Polished Cold Drawn & Polished Peeled and Polished |
4.5mm - 25.4mm 4.5mm - 75.0mm 75.0mm - 200.0mm |
| Free Cutting Steel | AISI 12L14 AISI 1215 |
Round Square Hexagon Round |
Cold Drawn & Polished Cold Drawn Cold Drawn Cold Drawn & Polished |
4.5mm - 60.0mm 4.5mm - 25.4mm 4.5mm - 50.0mm 4.5mm - 60.0mm |
| Spring Steel | SUP 9 SUP 12 |
Round Round |
Cold Drawn & Polished Cold Drawn & Polished |
10.0mm - 40.0mm 10.0mm - 27.0mm |
| Alloy Steel | AISI 4140 AISI 4340 |
Round Round Round Round Round Round |
Cold Drawn & Polished Peeled & Polished Hot Rolled, Quenched & Tempered Cold Drawn & Polished Peeled & Polished Hot Rolled, Quenched & Tempered |
12.0mm - 75.0mm 75.0mm - 120.0mm 12.0mm - 120.0mm 12.0mm - 75.0mm 75.0mm - 120.0mm 12.0mm - 120.0mm |
| Alloy Tool Steel | DIN 2210 | Round | Centerless Grinding & Polished | 2.0mm - 30.0mm |
Supply Conditions
I. Standard: SAE / JIS / AISI
II. Diameter Tolerance
| Diameter | h7 | h8 | h9 | h10 | h12 |
|---|---|---|---|---|---|
| 3.0mm - 6.0mm | +0 / -0.012mm | +0 / -0.018mm | +0 / -0.030mm | +0 / -0.048mm | |
| 6.1mm - 10.0mm | +0 / -0.015mm | +0 / -0.022mm | +0 / -0.036mm | +0 / -0.058mm | |
| 10.1mm - 18.0mm | +0 / 0.018mm | +0 / -0.027mm | +0 / -0.043mm | +0 / -0.070mm | |
| 18.1mm - 30.0mm | +0 / -0.021mm | +0 / - 0.033mm | +0 / -0.052mm | +0 / -0.084mm | |
| 30.1mm - 50.0mm | +0 / -0.062mm | +0 / -0.100mm | |||
| 50.1mm - 80.0mm | +0 / -0.074mm | +0 / -0.120mm | |||
| 80.1mm - 120.0mm | +0 / -0.087mm | +0 / -0.140mm | |||
| 120.0mm - 200.0mm | +0 / -0.400mm |
IV. Weight: Theoretical Weight
V. Quantity Tolerance: +/-10%
VI. Packing: <10mm: 0.5MT per bundle
10.0mm - 200.00mm: 1.0MT per bundle
VII. Colour Coding: According to customer’s requirement

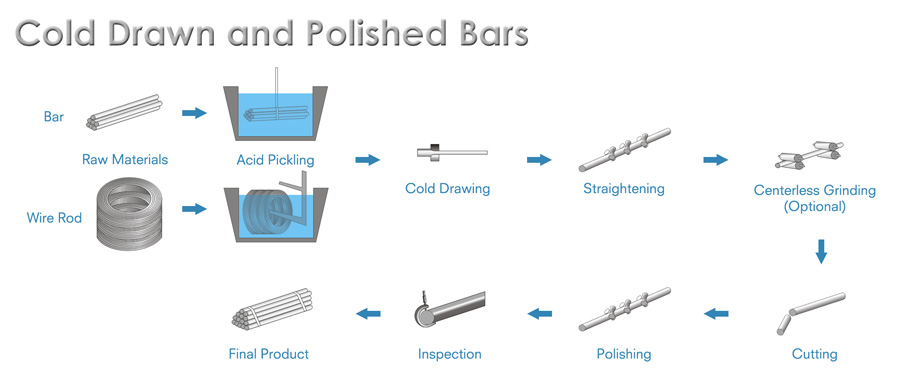

Process Flow
Packing
